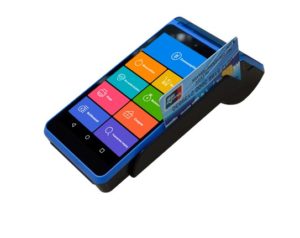

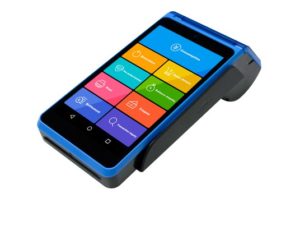

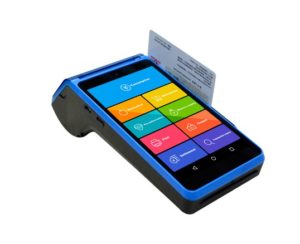

V7 POS Terminal Series

Description

V7 adalah terminal POS yang cukup cerdas berdasarkan sistem pengoperasian . Pembayaran tetap melalui fitur, pemasaran, ekspansi dalam satu aplikasi, Untuk memenuhi bisnis dalam pembayaran, transfer, pemasaran kartu dan jenis kebutuhan keuangan lainnya.

Area aplikasi

Keuangan, perbankan, pembayaran pihak ketiga, operator, ritel konsumen, asuransi, logistik, polisi, dan industri lainnya.

Intelligent module: quad-core ARM Cortex-A7 processor

Security Processor: High Performance Security Processor

Memory: 8GB FLASH; 1GB DDR

Android Version: 5.1 and above

Magnetic Card Module: 1/2/3 track, forward and reverse card reader, in line with ISO7811 standard, Credit Card lifespan of 500,000 times

IC card: in line with EMV and PBOC specifications, support class A card (5.0V),
class B card (3.0V) or class C card (1.8V)

Deck: life of 500,000 times

Non-contact cards: ISO / IEC 14443 Standard Type A & B,
Mifare cards, compliant with QPBOC, PayPass, PayWave specifications.

External interface: a micro USB, OTG mode; bottom shell with charging column.

SAM card: 2 PSAM cards, ISO7816 standard, one of which SAM can be adjusted to SIM card

SIM card: 1

Product Specifications and Performance

Display: 5.5-inch screen color screen, resolution 1280 * 720

Touch Screen: capacitive touch screen, 5 points touch

Printer: high-speed thermal printer, paper width 58mm, paper roll diameter 40mm

Wireless module: all Netcom

National secret chip: built-in hard secret chip, support the country secret SM2, SM3, SM4 algorithm

Lithium Battery: two 18650 batteries, two sections in parallel, the capacity of 4400 mAh

Camera: front camera 2 million pixels, after the camera 500 million pixels

Wifi, bluetooth, positioning function, TF card

Environmental Characteristics:

Power adapter: 5V / 2A;

Working temperature: -10   ~ 50  ;

Storage temperature: -20   ~ 70  ;

Relative Humidity: 10% to 90% non-condensing
